The Earth Leakage Circuit Breaker (ELCB) is designed to detect leakage currents and disconnect the power supply instantly to protect personnel and electrical equipment from electric shock and fire hazards. Available in both 2-pole and 4-pole versions, this breaker supports single phase and three phase distribution systems, making it suitable for a wide range of applications.
Manufactured with a precise tripping mechanism and durable enclosure, the unit ensures consistent protection performance under varying load conditions. It can be installed as a main protective device or integrated into distribution boards and panel systems.
Protection Functions
-
Earth leakage protection (residual current detection)
-
Overload protection
-
Short circuit protection
-
Automatic power disconnection during fault conditions
-
Enhanced electrical safety for users and equipment
Key Features
-

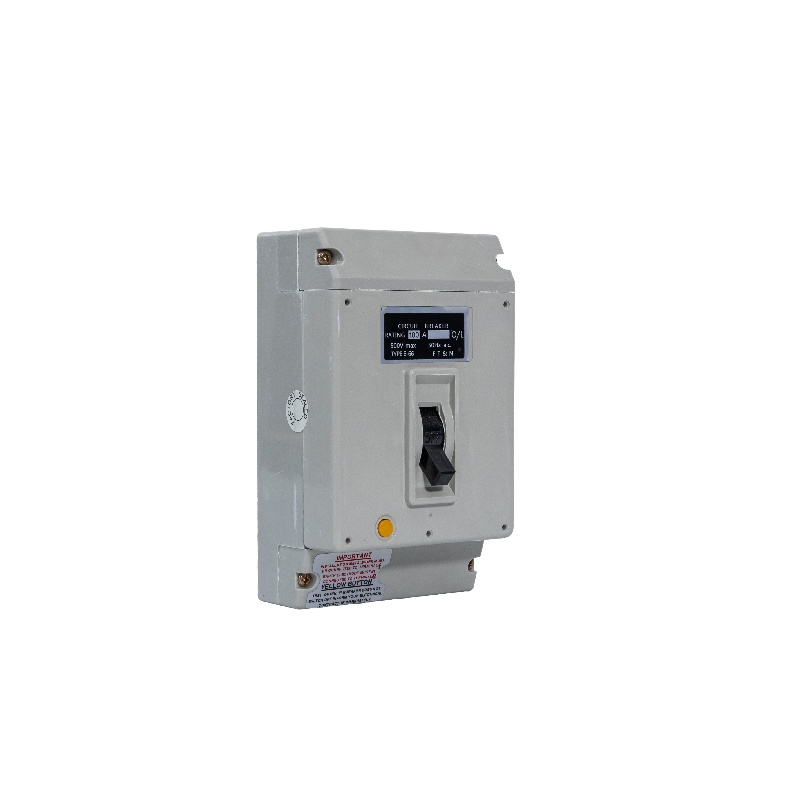

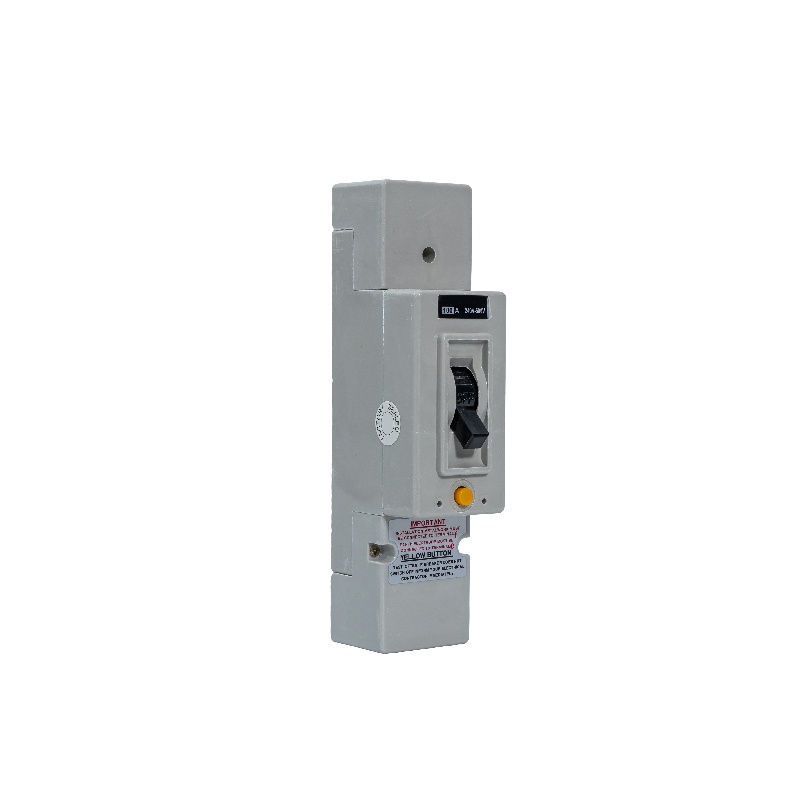

Available in 2P (single phase) and 4P (three phase) versions
-
High sensitivity leakage detection for shock prevention
-
Stable and fast tripping response
-
Reliable mechanical endurance
-
Clear switching and reset operation
-
Compatible with distribution boards and consumer units
-
Robust enclosure for indoor installation
-
Long service life with consistent performance
Typical Applications
-
Residential distribution systems
-
Commercial buildings
-
Industrial electrical installations
-
Distribution boards and mains panels
-
Electrical control cabinets
-
Power safety protection systems
Configuration Options
-
Poles: 2P / 4P
-
Rated current options available
-
Leakage sensitivity options (e.g., 30mA / 100mA / 300mA)
-
Mounting styles depending on installation requirements
Why Use an Earth Leakage Circuit Breaker
An ELCB is essential in modern electrical systems to prevent electric shock and reduce fire risk caused by insulation failure or ground faults. By detecting imbalance in current flow, it ensures rapid isolation of faulty circuits and enhances overall system reliability.
